304/316L Stainless Steel Sanitary Bend 90 Degree Welded Elbow

Name: 304316L Stainless Steel Sanitary Bend 90 Degree Welded Elbow
Brand: TOBO
Price: 19 USD

China 304/316L Stainless Steel Sanitary Bend 90 Degree Welded Elbow wholesale

Brand Name : TOBO

Model Number : ALL

Certification : ASME/GB/JIS/ANSI

Place of Origin : China

MOQ : 10KG

Price : 19-47USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000kg/month

Delivery Time : 7 work days

Packaging Details : Plywood crates

Material : Stainless Steel

Shape : Equal

Connection : Welding

Technics : Casting

Head code : round

Type : Elbow

Surface treatment : Mirror Polished

Size : Customized Size

Standard : gb and so on

Product name : Schedule 40 Stainless Steel 90 Degree Elbow SCH160 R=1.5D

Contact Now

304/316L Stainless Steel Sanitary Bend 90 Degree Welded Elbow

Overview

Essential details

Warranty:: 3 years

Customized support:: OEM, ODM

Place of Origin:: Zhejiang, China

Brand Name:: WLM

Technics:: Forged

Connection:: Welding

Shape:: Equal

Head Code:: Square, Round

Material:: Hygienic 316L Stainless Stee

Dimensions According To:: ASME BPE

Size:: 1/4" ~ 6"

Main Type:: 45 Degrees, 90 Degrees, 180 Degrees

Connection End:: Butt Weld

Application:: Pipe Lines For Food, Pharmaceutical, Dairy, Beer Industries

High Light:: sanitary stainless fittings, stainless steel hygienic fittings

Surface treatment:: Mirror Polished

Certification:: Reach, IECEE

Supply Ability

Supply Ability: 5000 Piece/Pieces per Month

Packaging & delivery

Packaging Details: Bubber Paper First
Then Carton Box, Pallet Or Plywood Case
Also Can According To Your Request

Port: SHANGHAI, NINGBO

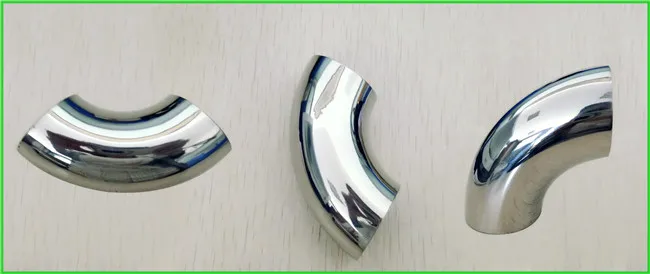

Picture Example:

Lead time:

Quantity(pieces)	1 - 10	>10
Lead time (days)	7	To be negotiated

Product Description:
 ASME BPE sanitary butt weld elbows fittings are designed specifically for use in pharmaceutical applications to connect stainless steel pipes which need to turn directions, so mateiral is always 316 stainless steel. These fittings need extended tangents to accommodate the orbital weld heads used heavily in the autogenously welding procedures used in the joining of pharmaceutical fittings. BPE elbow fittings dimension are outlined in the Bioprocess Equipment standard.

 The butt weld elbows are machined by high class CNC machine, and the surface can meet high hygienic requirement.

 The surface finish of our BPE butt weld elbow 20 Ra Mechanical ID polish and 32 Ra polished OD. After the PL and PC finishes, w get into the additional electropolish finishes- PL and PM.
Applications:

 * All companies in need of hygiene and high purity
 * End-users in pharmaceutical, food, biotechnology, dairy
 * OEMs
 * Piping and Installations Companies
 * Engineering Contractors
 * Maintenance, Repair and Overhaul Companies
 * "Hygienic Equipment" means all equipment,
 * Components, assemblies and systems


Technical Details:

Name	Sanitary Butt Weld /Tri Clamp Elbows / Bends
Material	316L stainless steel
Size	1/4" - 6"
Standards	ASME BPE
Main types	45 degrees elbow, 90 degrees elbow, 180 degrees elbow
Working pressure	10 bar
Working temperature	-10 °C ~ +140 °C
Surface treatment	pharmaceutical grade Ra<0.4μm

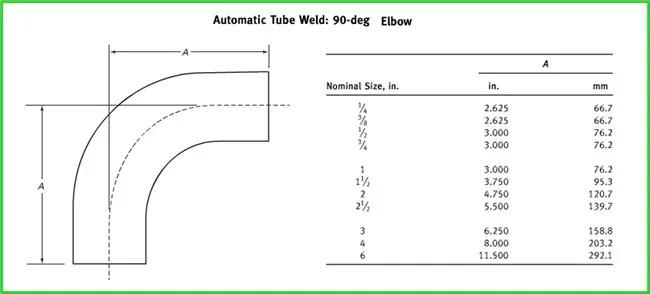

Dimensions

304/316L Stainless Steel Sanitary Bend 90 Degree Welded Elbow

Photo Gallery:

304/316L Stainless Steel Sanitary Bend 90 Degree Welded Elbow Images
